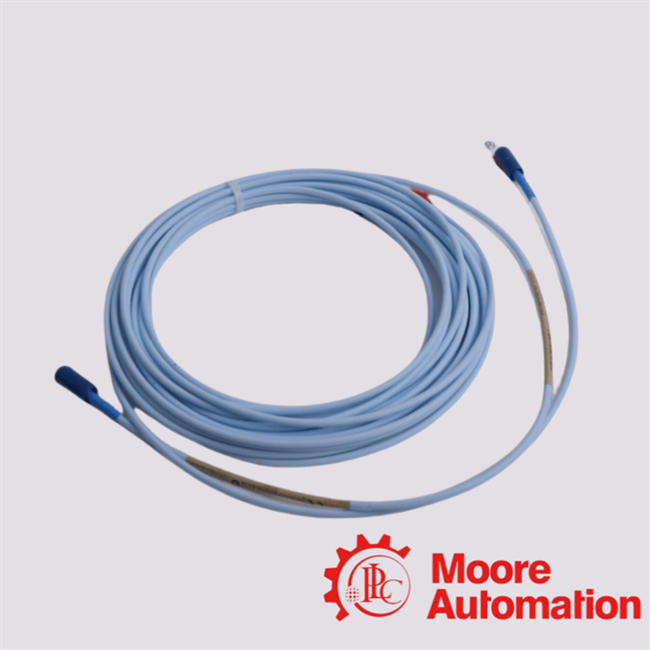

330130-080-10-00 Bently Nevada Extension Cable
Description
The the 330130‑080‑10‑00 extension cable would serve in such a system to connect the probe to the sensor, at a length of around 8 metres, with the specified cable/connector option code “10”330130‑series extension cable is
designed to work with the 3300 XL proximity transducer systems. According to the 3300 XL 8 mm Proximity Transducer System datasheet:The components are designed to be fully
interchangeable across probes, extension cables and sensors without individual matching or bench calibration.For the part number “330130‑080‑10‑00” the breakdown
appears to be:“330130” → the base model number for the 3300 XL extension cable family.“‑080” → likely the length option, probably 8.0 metres (or ~26.2 feet)
as seen in related part numbers. For example, “080 = 8.0 metres (26.2 ft)” for
a 330130‑080‑13‑00 variant.
|
FAQ
|
|
Q1: What does this extension cable do?
A1: The extension cable provides the physical and electrical connection between the proximity probe and the Proximitor sensor in the 3300 XL system. It carries the signal generated by the probe to the sensor for processing.
|
|
Q2: Can I substitute a different cable length or cable option?
A2: Yes — the 3300 XL extension cable family comes in multiple lengths (for example 4.0 m, 8.0 m, 8.5 m etc) and multiple cable/protector/
armor options. However, when substituting, you must ensure the electrical length and compatibility with the
probe and Proximitor remains appropriate (to maintain system performance and calibration). The
datasheet emphasises that the electrical length of probe + extension
cable + Proximitor must be constant.
|
|
Q3: What environmental conditions can this cable handle?
A3: Typical 3300 XL extension cables are rated for harsh environments: for example one variant (330130‑080‑01‑05)
is specified to –52 °C to +177 °C for standard cable option. The connectors are gold‑plated and use
ClickLoc™ locking to resist loosening and to help with robust mechanical connections. If you
have special conditions (e.g., very high temperature, aggressive media, high radiation)
you should verify the specific cable
option’s rating.
|
