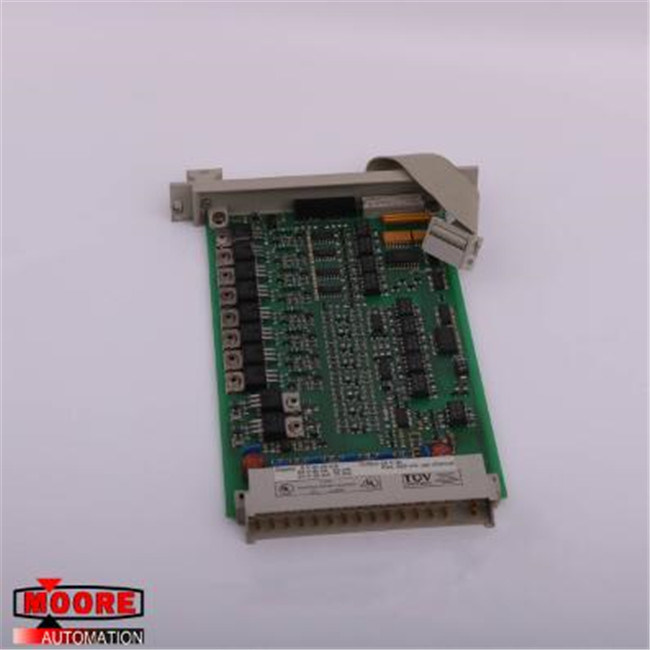

10205/2/1 HONEYWELL PLC FSC Fail-Safe Analog Output Module
| Product Description |
|
The The Honeywell 10205/2/1 module is described as a fail-safe analog output module, designed for use in Honeywell’s FSC system architecture.
It supports two output channels (analog) with output ranges of 0-20 mA or 4-20 mA, intended for control applications where
safety-related analog outputs need to be monitored/tested.It belongs to the FSC I/O modules family which
emphasizes safety (fail-safe behaviour), diagnostics, galvanic isolation
and redundancy considerations.
|
| More Technical Data |
| Type/Model number: |
10205/2/1 (sometimes with suffix “11600”). |
| Output channels: |
2 channels. |
| Output signal range: |
0-20 mA or 4-20 mA (active or passive) analog. |
| D/A converter resolution: |
12-bit. |
| Frequently Asked Questions |
|
Q1: What exactly does the 10205/2/1 module do?
A: It provides two analog output channels in a fail-safe module for Honeywell’s FSC I/O rack. Each channel can output 0-20 mA or 4-20 mA,
and the module includes diagnostics (D/A and A/D conversion) to monitor correct output, crosstalk and
de-energization. The analog signals are galvanically isolated.
Q2: Can this module be used in redundant I/O racks (i.e., parallel outputs)?
A: One source states it cannot be used in redundant I/O with parallel current outputs because outputs can’t be
parallell-connected. Therefore if your system uses redundant analog outputs,
you likely need a different variant.
Q3: How do I calibrate the outputs?
A: The module includes onboard potentiometers (P2 and P3) for calibration. Calibration is performed
using the FSC software (“View FSC system and process status”), along with
an extender module, flat-cable and multimeter.
Q4: What output ranges are supported?
A: According to listings: 0-20 mA or 4-20 mA.
Q5: How many channels does it support?
A: Two (2) analog output channels.
|
