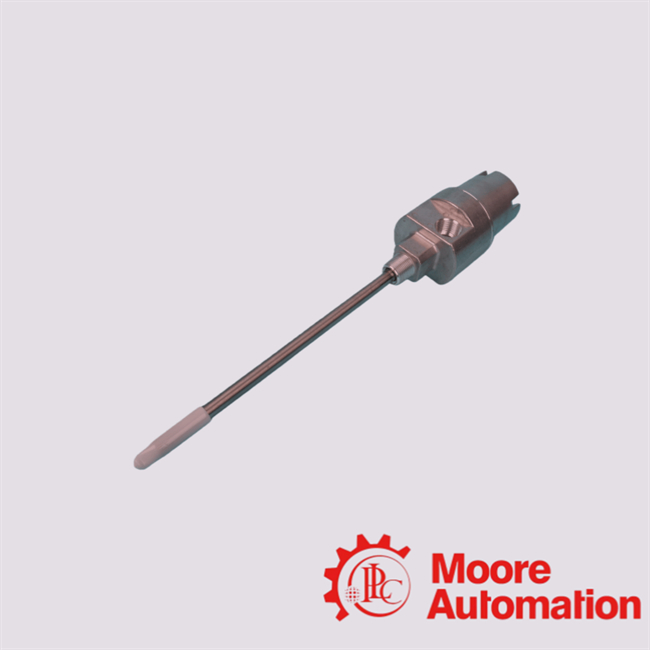

21000-00-00-00-250-03-02 Bently Nevada Relative Probe Assembly

Name: 21000-00-00-00-250-03-02 Bently Nevada Relative Probe Assembly
Brand: MOORE AUTOMATION LIMITED
SKU: 21000-00-00-00-250-03-02
Availability: InStock

Ürün Detayları:

Menşe yeri:	Amerika
Marka adı:	Bently Nevada
Sertifika:	CO.CQ
Model numarası:	21000-00-00-00-250-03-02

Detay Bilgi

Menşe yeri:

Amerika

Marka adı:

Bently Nevada

Sertifika:

CO.CQ

Model numarası:

21000-00-00-00-250-03-02

Tanım:

İlgili Prob Düzeneği

Parça numarası:

21000-00-00-00-250-03-02

Marka:

Işın Nevada

Üretim yılı:

2020

Uygulama:

Nükleer santral

Kurşun zamanı:

Stokta var

Ağırlık:

4lbs

Vurgulamak:

High Light

Vurgulamak:

Bently Nevada relative probe assembly

3500 system vibration probe

Bently Nevada probe with warranty

Alım Satım Bilgileri

Min sipariş miktarı:

Fiyat:

inquiry

Ambalaj bilgileri:

Fabrika mühürlü yeni ve orijinal

Teslim süresi:

Bugün

Ödeme koşulları:

T/T

Yetenek temini:

Günde 10 parça

Ürün Açıklaması

21000-00-00-00-250-03-02 Bently Nevada Relative Probe Assembly

`Description`

The 21000 series from Bently Nevada are heavy-duty proximity probe housing/assembly systems designed for mounting proximity (eddy-current) probes on rotating

machinery in industrial applications. They enable external access for gap adjustment or probe replacement without full machine disassembly.

21000-00-00-00-250-03-02 Details

FAQ

1. Does this assembly include the proximity probe itself?

In this specific variant (“00” in the probe option slot) it appears that the probe is not included (“Probe not required”). So it may be just the housing

assembly configured for a certain penetration depth, fittings, thread, etc. You will need to separately procure the compatible

probe (for example the 3300 XL series) if required.

2. What is “probe penetration” and why is it important?

A: Probe penetration is the depth the probe tip (or the probe sleeve) extends into the machine housing so that the sensor

tip sits at the correct position relative to the target shaft or rotor. If penetration is incorrect, the probe gap and

measurement accuracy may be compromised. The ordering scheme lets you specify penetration depth

in increments (e.g., 0.1 in increments) for correct geometry.

3. What mounting threads and mechanical constraints should I check?

A: For the 21000 aluminum housing variant, if you use a standoff adapter (C option not “00”), mounting

thread must be “02” (3/4-14 NPT). The body is aluminum with stainless steel sleeve; typical

weight ~1.1kg without fittings. The housing must be mounted securely to

ensure good probe coupling and minimal distortion.
