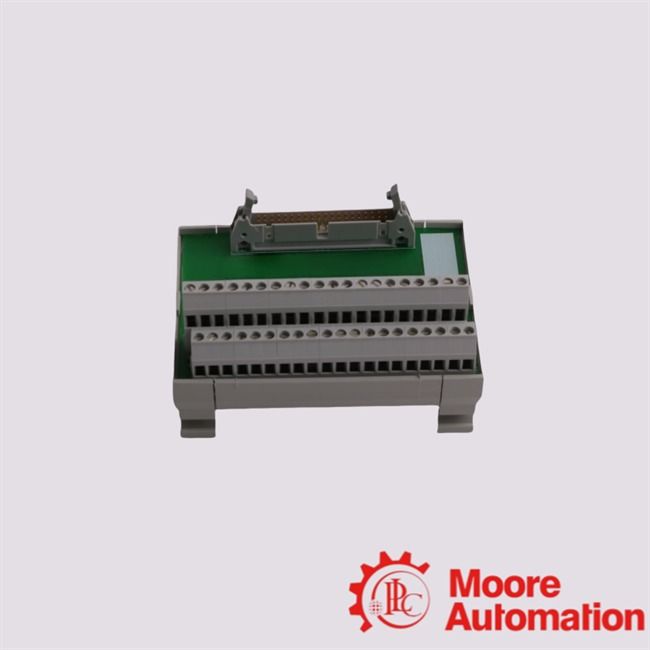

1492-IFM40F-FS-2 Allen Bradley PLC MODULE
Specification
| Product Description |
|
The 1492‑IFM40F‑FS‑2 is a DIN-rail mounted digital interface/fusible terminal module designed to
bridge PLC I/O modules (e.g., ControlLogix 1756, SLC/PLC‑5, legacy 1771) to field devices.
|
| More Technical Data |
| PLC connector |
Fixed 40-pin under 1492 wiring system |
| Output points |
16 fusible digital outputs |
| Fuse type |
5 × 20 mm clips (fuses not included) |
| Isolation |
16 individually isolated groups |
| Field-side terminals |
Two per output circuit |
| Frequently Asked Questions |
|
1. Q: What fuse rating should I use?
A: Use 5 × 20 mm fuses rated ≤ 2 A per output. Aggregate fuse current must not exceed 12 A for the module .
2. Q: Can I mix 24 VDC and 120 VAC loads?
A: Yes. The 16 isolated groups allow different voltage types across outputs, up to 132 V AC/DC .
3. Q: How do I detect blown fuses?
A: This model does not include blown-fuse LEDs. You must manually inspect or use external monitoring tools .
4. Q: Which PLC modules are compatible?
A: It connects via 1492 pre-wired cables to ControlLogix 1756, SLC-5/PLC-5 1771 I/O modules, and high-speed counter PLC modules .
5. Q: What about inductive loads?
A: Surge suppression is mandatory. A UL‑rated device rated for ≥ 2.5 kV is recommended
|
